Given figure shows few data points in a photo-electric effect experiment for a certain metal. The minimum
energy for ejection of electrons from its surface is: (Planck's constant $h = 6.62 \times 10^{-34}\,J.s$ )
a.
$2.27\,eV$
Correct Answer
b.
$2.59\,eV$
c.
$1.93\,eV$
d.
$2.10\,eV$
No explanation saved for this question yet.
Q2mcq

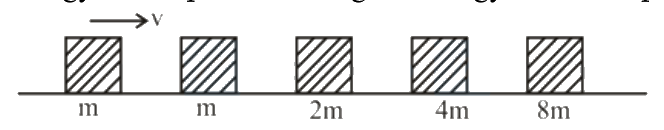

Blocks of masses $m, \,2m, \,4m$ and $8m$ are arranged in a line of a frictionless floor. Another block of mass $m$ ,
moving with speed $υ$ along the same line (see figure) collides with mass $m$ in perfectly inelastic manner. All the
subsequent collisions are also perfectly inelastic. By the time the last block of mass $8m$ starts moving the total
energy loss is $p%$ of the original energy. Value of ‘ $p$ ’ is close to:
a.
$77$
b.
$94$
Correct Answer
c.
$37$
d.
$87$
No explanation saved for this question yet.
Q3mcq
A wire $A$ , bent in the shape of an arc of a circle, carrying a current of $2\,A$ and having radius $2\, cm$ and another
wire $B$ , also bent in the shape of an arc of a circle, carrying a current of $3\,A$ and having radius of $4\,cm$ , are
placed as shown in the figure. The ratio of the magnetic fields due to the wires $A$ and $B$ at the common centre
$O$ is:
a.
$4 : 6$
b.
$6 : 4$
c.
$2 : 5$
d.
$6 : 5$
Correct Answer
No explanation saved for this question yet.
Q4mcq

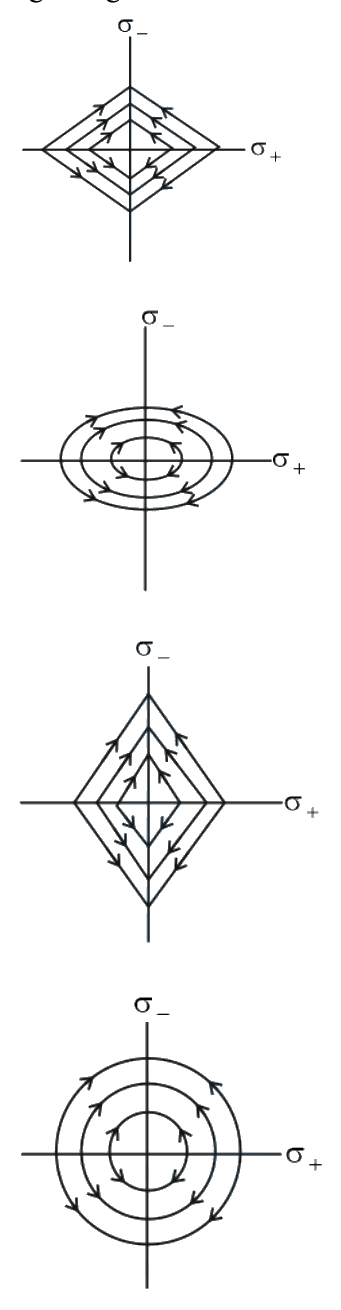

Two charged thin infinite plane sheets of uniform charge density $\sigma _{+}$ and $\sigma _{-}$ , where $|\sigma _{+}| > |\sigma _{-}|$ , intersect at
the right angle. Which of the following best represents the electric field lines for the system:
No explanation saved for this question yet.
Q5mcq
On the $x$ -axis and at a distance $x$ from the origin, the gravitational field due to a mass distribution is given by
$\frac{Ax}{(x^{2}+a^{2})^{3/2}}$ in the $x$ -direction. The magnitude of the gravitational potential on the $x$ -axis at a distance $x$ , taking its
value to be zero at infinity is:
a.
$\frac{A}{(x^{2}+a^{2})^{1/2}}$
Correct Answer
b.
$\frac{A}{(x^{2}+a^{2})^{3/2}}$
c.
$A(x^{2} +a^{2})^{1/2}$
d.
$A(x^{2} +a^{2})^{3/2}$
No explanation saved for this question yet.
Q6nat
A closed vessel contains $0.1$ mole of a monoatomic ideal gas at $200\,K$ . If $0.05$ mole of the same gas at $400\,K$
is added to it, the final equilibrium temperature (in $K$ ) of the gas in the vessel will be close to ______
✓ Accepted Answer:267
No explanation saved for this question yet.
Q7mcq
A battery of $3.0\,V$ is connected to a resistor dissipating $0.5\,W$ of power. If the terminal voltage of the battery
is $2.5\,V$ , the power dissipated within the internal resistance is:
a.
$0.50\,W$
b.
$0.072\,W$
c.
$0.10\,W$
Correct Answer
d.
$0.125\,W$
No explanation saved for this question yet.
Q8mcq
A small bar magnet is placed with its axis at $30^{o}$ with an external magnetic field of $0. 06\,T$ experiences a
torque of $0. 018\, Nm$ . The minimum work required to rotate it from its stable to unstable equilibrium position
is:
a.
$6. 4 \times 10^{-2}\,J$
b.
$9. 2 \times 10^{-3}\,J$
c.
$7. 2 \times 10^{-2}\,J$
Correct Answer
d.
$11. 7 \times 10^{-3}\,J$
No explanation saved for this question yet.
Q9nat
$ABC$ is a plane lamina of the shape of an equilateral triangle. $D, \,E$ are mid-points of $AB, \,AC$ and $G$ is the
centroid of the lamina. Moment of inertia of the lamina about an axis passing through $G$ and perpendicular to
the plane $ABC$ is $I_{0}$ . If part $ADE$ is removed, the moment of inertia of the remaining part about the same axis
is $\frac{NI_{0}}{16}$ where $N$ is an integer. Value of $N$ is:
✓ Accepted Answer:11
No explanation saved for this question yet.
Q10mcq
Match the $\frac{C_{p}}{C_{v}}$ ratio for ideal gases with different type of molecules:
Molecule Type $C_{p}/C_{v}$
(A) Monoatomic (I) $7/5$
(B) Diatomic rigid molecules (II) $9/7$
(C) Diatomic non-rigid molecules (III) $4/3$
(D) Triatomic rigid molecules (IV) $5/3$
For a transvers wave travelling, along a straight line, the distance between two peaks (crests) is $5\,m$ , while the
distance between one crest and one trough is $1. 5\,m$ . The possible wavelengths (in $m$ ) of the waves are:
A circular disc of mass $M$ and radius $R$ is rotating about its axis with angular speed $\omega _{1}$ . If another stationary
disc having radius $\frac{R}{2}$ and same mass $M$ is dropped co-axially on to the rotating disc. Gradually both discs
attain constant angular speed $\omega _{2}$ . The energy lost in the process is $p%$ of the initial energy. Value of $p$ is
______
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A air bubble of radius $1\,cm$ in water has an upward acceleration of $9.8\,cms^{-2}$ . The density of water is
$1\,gm\,cm^{-3}$ and water offers negligible drag force on the bubble. The mass of the bubble is $(g\, = \,980\,cm/s^{2})$ .
a.
$4.51\,gm$
b.
$3. 15\,gm$
c.
$4.15\,gm$
d.
$1.52\,gm$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A beam of plane polarized light of large cross-sectional area and uniform intensity of $3 .3 \,W\,m^{-2}$ falls
normally on a polarizer (cross-sectional area $3 \times 10^{-4}\,m^{2}$ ), which rotates about its axis with an angular speed
of $31 .4 \, rad \,s^{-1}$ . The energy of light passing through the polarizer per revolution, is close to:
a.
$1 .0 \times 10^{-5}\,J$
b.
$1. 0 \times 10^{-4}\,J$
c.
$1. 5 \times 10^{-4}\,J$
d.
$5. 0 \times 10^{-4}\,J$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A two point charges $4q$ and $-q$ are fixed on the $x$ -axis at $x= \frac{-d}{2}$ and $x= \frac{d}{2}$ , respectively. If the third point
charge ‘ $q$ ’ is taken from the origin to $x=d$ along the semicircle as shown in the figure, the energy of the
charge will:
a.
Increase by $\frac{3q^{2}}{4\pi \in _{0}d}$
b.
Increase by $\frac{2q^{2}}{3\pi \in _{0}d}$
c.
decrease by $\frac{q^{2}}{4\pi \in _{0}d}$
d.
decrease by $\frac{4q^{2}}{3\pi \in _{0}d}$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.

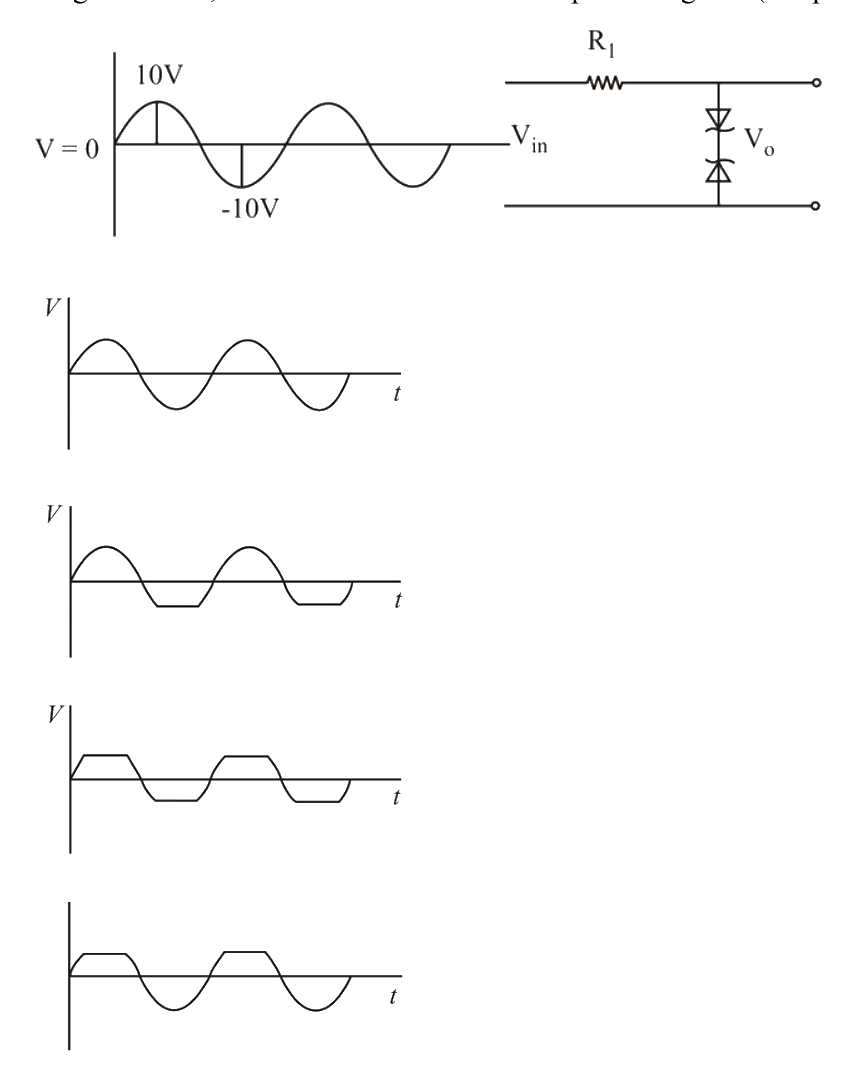

Take the breakdown voltage of the zener diode used in the given circuit as $6V$ . For the input voltage shown in
the figure below, the time variation of the output voltage is: (Graphs drawn are schematic and not to the scale)
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
$⌢$
Starting from the origin at time $t = 0$ , with initial velocity $5\, j \,ms^{-1}$ , a particle moves in the $x$ - $y$ plane with a
$⌢ ⌢$
constant acceleration of $(10 i + 4 j)ms^{-2}$ . At time $t$ , its coordinates are $(20\,m,\,y_{0}\,m)$ . The values of $t$ and $y_{0}$
are, respectively:
a.
$2\,s$ and $18\,m$
b.
$4\,s$ and $52\,m$
c.
$2\,s$ and $24\,m$
d.
$5\,s$ and $25\,m$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
In the line spectra of hydrogen atom, difference between the largest and the shortest wavelengths of the Lyman
series is $305\,A^{\circ }$ . The corresponding difference for the Paschan series in $A^{\circ }$ is:________
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.

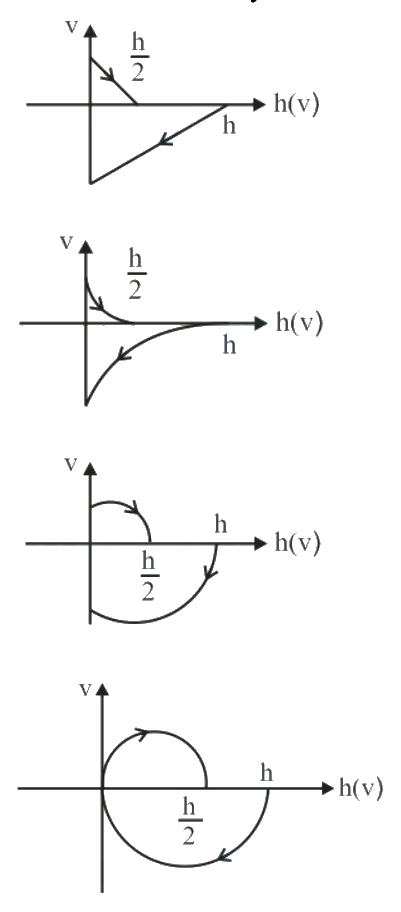

A tennis ball is released from a height $h$ and after freely falling on a wooden floor it rebounds and reaches
height $h/2$ . The velocity versus height of the ball during its motion may be represented graphically by: (graphs
are drawn schematically and on not to scale)
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
The specific heat of water $= 4200\,J kg^{-1}\,K^{-1}$ and the latent heat of ice $= 3.4 \times 10^{5}\,J$ k $g^{-1}$ . $100$ grams of ice at
$0\,^{o}C$ is placed in $200\,g$ of water at $25\,^{o}C$ . The amount of ice that will melt as the temperature of water reaches
$0\,^{o}C$ is close to (in grams)
a.
$61.7$
b.
$63. 8$
c.
$69. 3$
d.
$64. 6$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.

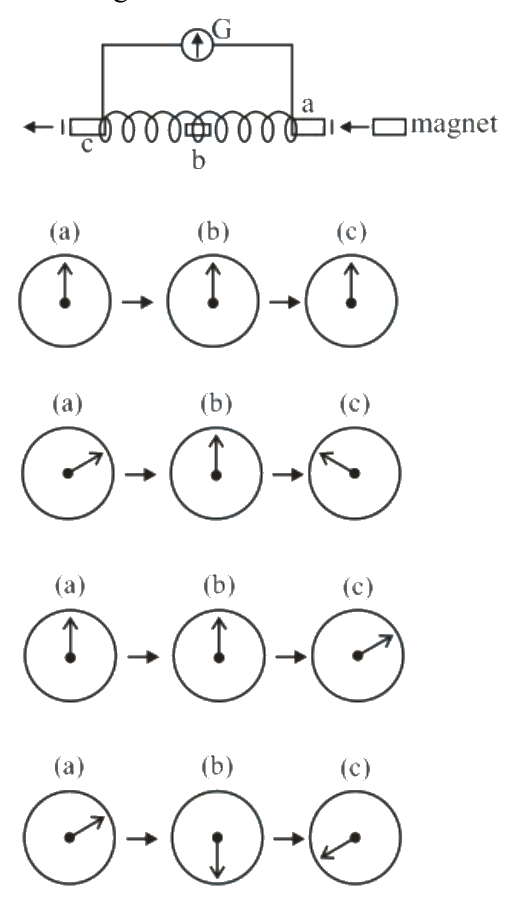

A small bar magnet is moved through a coil at constant speed from one end to the other. Which of the
following series of observations will be seen on the galvanometer $G$ attached across the coil?
Three positions shown describe: (a) the magnet's entry (b) magnet is completely inside and (c) magnet's exit.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Particle $A$ of mass $m_{A} = \frac{m}{2}$ moving along the $x$ -axis with velocity $v_{0}$ collides elastically with another
particle $B$ at rest having mass $m_{B} = \frac{m}{3}$ . If both the particles move along the $x$ -axis after the collision, the
change $\Delta \lambda$ in the wavelength of the particle $A$ , in terms of its de-Broglie wavelength $(\lambda _{0})$ before the collision
is:
a.
$\Delta \lambda = \frac{3}{2}\lambda _{0}$
b.
$\Delta \lambda = \frac{5}{2}\lambda _{0}$
c.
$\Delta \lambda = 2\lambda _{0}$
d.
$\Delta \lambda = 4\lambda _{0}$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
In a compound microscope, the magnified virtual image is formed at a distance of $25\,cm$ from the eye-piece.
The focal length of its objective lens is $1\,cm$ . If the magnification is $100$ and the tube length of the microscope
is $20\,cm$ , then the focal length of the eye-piece lens (in $cm$ ) is ______
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Among statements (a) - (d), the correct ones are :
(a) Lime stone is decomposed to $CaO$ during the extraction of iron from its oxides.
(b) In the extraction of silver, silver is extracted as an anionic complex.
(c) Nickel is purified by Mond’s process.
(d) $Zr$ and $Ti$ are purified by Van Arkel method.
a.
(a), (b), (c) and (d)
b.
(a), (c) and (d) only
c.
(b), (c) and (d) only
d.
(c) and (d) only
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.

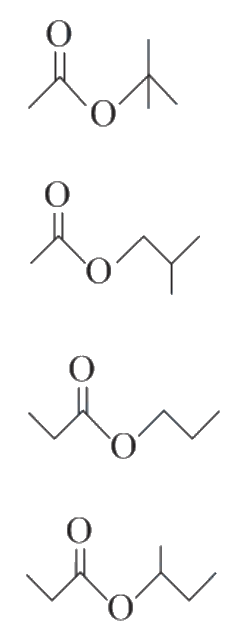

An organic compound (A) (molecular formula $C_{6}H_{12}O_{2}$ ) was hydrolysed with dil. $H_{2}SO_{4}$ to give a
carboxylic acid (B) and an alcohol (C). ‘ $C$ ’ gives white turbidity immediately when treated with anhydrous
$ZnCl_{2}$ and conc. $HCl$ . The organic compound (A) is:
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.

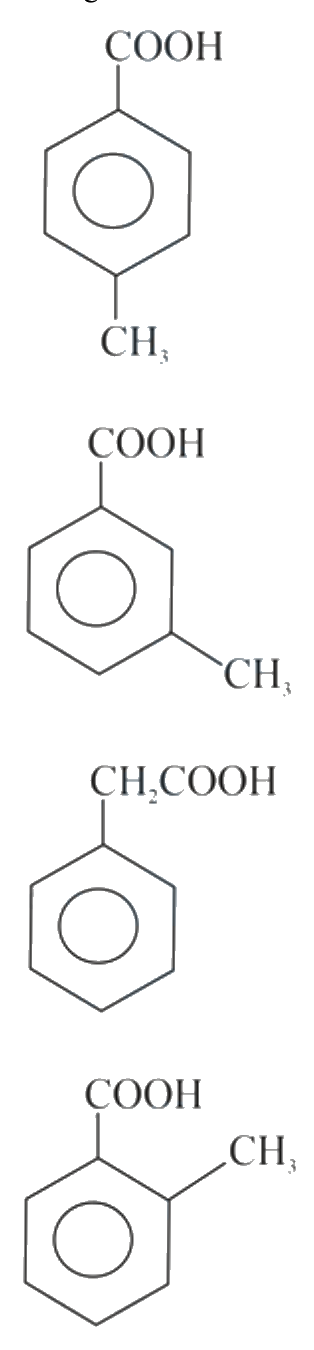

$[P]$ on treatment with $Br_{2}/ FeBr_{3}$ in $CCl_{4}$ produced a single isomer $C_{8}H_{7}O_{2}Br$ wile heating $[P]$ with
sodalime gives toluene. The compound $[P]$ is:
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
On heating, lead (ll) nitrate gives a brown gas (A). The gas (A) on cooling changes to a colourless solid/liquid
(B). (B) on heating with NO changes to ablue solid (C). The oxidation number of nitrogen in solid (C) is:
a.
$+5$
b.
$+2$
c.
$+3$
d.
$+4$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
If $75%$ of a first order reaction was completed in $90$ minutes, $60%$ of the same reaction would be completed in
approximately (in minutes) _____
(Take: $log 2 = 0.30\,; log 2.5 = 0.40$ )
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
For one mole of an ideal gas, which of these statements must be true?
(a) Internal energy $(U)$ and enthalpy $(H)$ each depends on temperature.
(b) Compressibility factor $Z$ is not equal to 1
(c) $C_{P,\,m}\,-C_{V,\,m} = R$
(d) $dU = C_{v}dT$ for any process
a.
(a) and (c)
b.
(b), (c) and (d)
c.
(c) and (d)
d.
(a), (c) and (d)
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
At $300\,K$ , the vapour pressure of a solution containing $1$ mole of $n$ -hexane and $3$ moles of $n$ -heptane is
$550\, mm$ of $Hg$ . At the same temperature, if one more mole of $n$ -heptane is added to this solution, the vapour
pressure of the solution increases by $10\, mm$ of $Hg$ . What is the vapour pressure in $mmHg$ of $n$ - heptane in its
pure state______?
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A $20. 0\, mL$ solution containing $0. 2\,g$ impure $H_{2}O_{2}$ reacts completely with $0. 316\,g$ of $KMnO_{4}$ in acid
solution. The purity of $H_{2}O_{2}$ (in $%$ ) is______ (mol. wt. of $H_{2}O_{2} = 34$ ; mol. wt. of $KMnO_{4} = 158$ )
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
The mean and variance of $8$ observations are $10$ and $13. 5,$ respectively. If $6$ of these observations are
$5, 7, 10, 12, 14, 15,$ then the absolute difference of the remaining two observations is :
a.
$9$
b.
$5$
c.
$3$
d.
$7$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $f$ be a twice differentiable function on $(1, 6)$ , If $f(2) = 8, \,f'(2) = 5, \,f'(x) \geq 1$ and $f''(x) \geq 4,$ for all
$x\in (1, 6)$ , then :
a.
$f(5) +f'(5) \leq 26$
b.
$f(5) +f'(5) \geq 28$
c.
$f'(5) +f''(5) \leq 20$
d.
$f(5) \leq 10$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Suppose a differentiable function $f(x)$ satisfies the identity $f(x+y) =f(x) +f(y) +xy^{2} +x^{2}y,$ for all real
$x$ and $y$ . If $_{x}lim_{\rightarrow 0\rightarrow } \frac{f(x)}{x} = 1,$ then $f'(3)$ is equal to :
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
The probability of a man hitting a target is $\frac{1}{10}.$ The least number of shots required, so that the probability of his
hitting the target at least once is greater than $\frac{1}{4},$ is....
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $y=y(x)$ be the solution of the differential equation, $xy' - y=x^{2}(xcosx+ sinx)$ , $x> 0$ . If $y(\pi ) =\pi ,$
then $y''(\frac{\pi}{2})+y(\frac{\pi}{2} )$ is equal to :
a.
$2 + \frac{\pi}{2}$
b.
$1 + \frac{\pi}{2} + \frac{\pi ^{2}}{4}$
c.
$2 + \frac{\pi}{2} + \frac{\pi ^{2}}{4}$
d.
$1 + \frac{\pi}{2}$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $P(3, 3)$ be a point on the hyperbola, $\frac{x^{2}}{a^{2}} - \frac{y^{2}}{b^{2}} = 1.$ If the normal to it at $P$ intersects the $x$ -axis at $(9, 0)$
and $e$ is its eccentricity, then the ordered pair $(a^{2},e^{2})$ is equal to:
a.
$( \frac{9}{2}, 3)$
b.
$(\frac{3}{2}, 2)$
c.
$( \frac{9}{2}, 2)$
d.
$(9, 3)$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $u= \frac{2z+i}{z-ki} ,z=x+iy$ and $k> 0$ . If the curve represented by $Re (u)+ Im (u) = 1$ intersects the $y$ -axis at
points $P$ and $Q$ where $PQ = 5$ then the value of $k$ is
a.
$\frac{3}{2}$
b.
$\frac{1}{2}$
c.
$4$
d.
$2$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Two vertical poles $AB= 15\,m$ and $CD= 10\,m$ are standing apart on a horizontal ground with points $A$ and
$C$ on the ground. If $P$ is the point of intersection of $BC$ and $AD,$ then the height of $P$ (in $m$ ) above the line
$AC$ is :
a.
$20/3$
b.
$5$
c.
$10/3$
d.
$6$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A survey shows that $63%$ of the people in a city read newspaper $A$ whereas $76%$ read news paper $B$ . If $x%$ of
the people read both the newspapers, then a possible value of $x$ can be:
a.
$29$
b.
$37$
c.
$65$
d.
$55$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
If the equation of a plane $P$ , passing through the intersection of the planes, $x+ 4y- z+ 7 = 0$ and
$3x+y+ 5z= 8$ is $ax+by+ 6z= 15$ for some $a,b\in R,$ then the distance of the point $(3, 2, -1)$ from the
plane $P$ is $… …$
Numerical answer locked.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $x_{0}$ be the point of local maxima of $f(x) = \vec{a}\cdot (\vec{b}\times \vec{c}),$ where $\vec{a}=xˆi-2ˆj+ 3ˆk, \,\,\vec{b}= -2ˆi+xˆj- ˆk$ and
$\vec{c}= 7ˆi-2ˆj+xˆk.$ Then the value of $\vec{a}\cdot \vec{b}+ \vec{b}\cdot \vec{c}+ \vec{c}\cdot \vec{a}$ at $x=x_{0}$ is:
a.
$-4$
b.
$-30$
c.
$14$
d.
$-22$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $\frac{x^{2}}{a^{2}} + \frac{y^{2}}{b^{2}} = 1(a>b)$ be a given ellipse, length of whose latus rectum is $10$ . If its eccentricity is
the maximum value of the function, $\phi (t) = \frac{5}{12} +t- t^{2}$ , then $a^{2} +b^{2}$ is equal to :
a.
$145$
b.
$116$
c.
$126$
d.
$135$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
$cos\theta \,isin\theta a b$
If $A=[ ], \,\,(\theta = \frac{\pi}{24} )$ and $A^{5} =[ ],$ where $i= \sqrt{-1}$ , then which one of the following is not
$isin\theta cos\theta c d$
true?
a.
$0 \leq a^{2} +b^{2} \leq 1$
b.
$a^{2} - d^{2} = 0$
c.
$a^{2} - c^{2} = 1$
d.
$a^{2} - b^{2} = \frac{1}{2}$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
A triangle $ABC$ lying in the first quadrant has two vertices as $A(1, 2)$ and $B(3, 1)$ . If $\angle BAC = 90^{o},$ and
$ar (\Delta ABC) = 5\sqrt{5}$ sq. units, then the abscissa of the vertex $C$ is :
a.
$1 + \sqrt{5}$
b.
$1 + 2\sqrt{5}$
c.
$2 + \sqrt{5}$
d.
$2 -1\sqrt{5}$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Given the following two statements:
$(S_{1}) : (q \vee p) \rightarrow (p \leftrightarrow ~q)\rightarrow$ is a tautology
$(S_{2}) : ~q \wedge (~p \leftrightarrow q)$ is a fallacy. Then :
a.
both $(S_{1})$ and $(S_{2})$ are not correct.
b.
only $(S_{1})$ is correct.
c.
only $(S_{2})$ is correct.
d.
both $(S_{1})$ and $(S_{2})$ are correct.
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
Let $\alpha$ and $\beta$ be the roots of $x^{2} -3x+p= 0$ and $\gamma$ and $\delta$ be the roots of $x^{2} -6x+q= 0.$ If $\alpha ,\beta ,\gamma ,\delta$ from a
geometric progression. Then ratio $(2\,q+p) : (2\,q- p)$ is
a.
$3 : 1$
b.
$9 : 7$
c.
$5 : 3$
d.
$33 : 31$
Correct Answer & Step-by-Step Solution Locked
Sign in free to reveal the correct answer and AI explanation for this question.
